Discipline Designators

CADDManager on June 10th, 2009

You need to include a discipline designator in your file names so that people can quickly see who created and is responsible for each file.

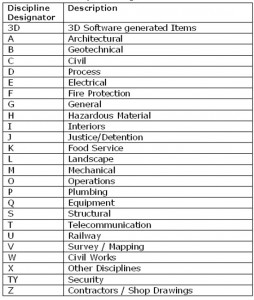

Here is an NCS compliant example:

CAD Standards Print The Above Post Print The Above Post Subscribe to RSS feed

One Response to “Discipline Designators”

  1. De'Linda
    August 8th, 2013 at 5:53 AM

    I’m pretty new to estimating and I ran into some pages of an architectural drawing that I do not know what the discipline designators mean. I have CU, CA and CS before the numbers on some of my drawings and I cannot find out what these letters mean. It’s just a curious question. Thanks!!
